SharperTek® Industrial Strength Heated Ultrasonic Cleaning Machine.

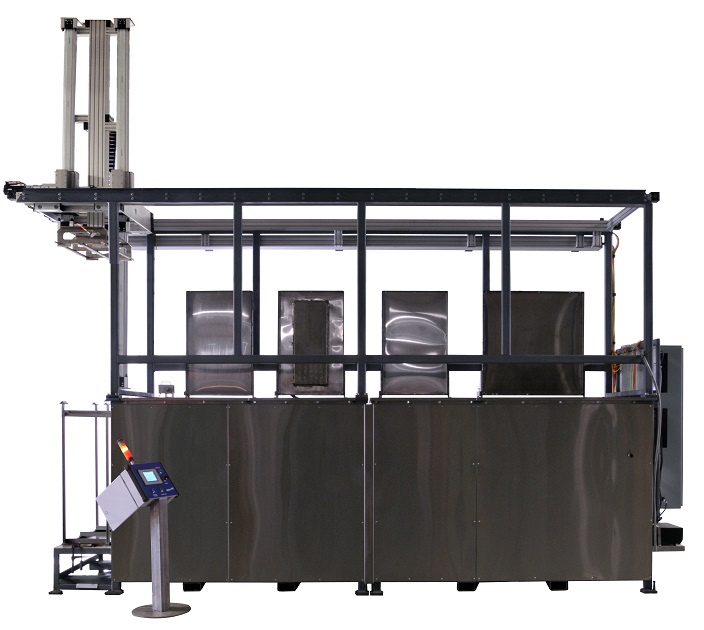

Open Lidsclick image to enlarge
Open LidsGantry Motion
Item #:
SH120G-4000-MT6-MP
Price:
$220,000.00
Quantity:
  • Description
  • Videos

SH120G-4000-MT6-MP SharperTek® Industrial Strength Heated Ultrasonic Cleaning Machine. Machine is equipped with ALLEN BRADLEY PLC and Programmable HMI interface. Cycle time can be programmed using HMI.

Automated Multi-Tank Ultrasonic Cleaner
Multi-tank unit consists of a total of 5 tanks: ultrasonic cleaning tank, spray wash tank, super-heated rinse tank, and a dual capacity drying tank, all of which are welded into a stainless steel table-top which is supported by a steel frame enclosure. All components are mounted in this frame assembly.

1. ) Ultrasonic Cleaning Tank:
* Tank cleaning size 16” x 36” x 50” tall from top of included stainless steel work rest platform to top of tank. Tank actual size is approximately 20x42x56.
* The ultrasonic cleaning tank includes a 12000 watts PEAK rod ultrasonic transducers.
* Transducers are powered by 3 Webber ultrasonic generators featuring Sweep Frequency Circuit to minimize the production of standing waves, and capable of Automatic Load Compensation which increases power to the transducers with increasing tank loads. These electronics are made in Germany and considered to be best in class.
* Operating Frequency: 40 / 25kHz
* Drain with ball valve and plugged fill ports included.
* Heater System: Designed to maintain cleaning fluid temperature. Includes a 12KVA immersion heater with digital temperature controller, and ceramic insulation. Tank target temperature is 120 to 140F.
* Tank is equipped with a weir and filtration system and an oil skimmer. The pump is a 1HP SSTL Centrifuge pump.
* Tank is equipped with automatic autofill feature and overflow protection. Overflow protection requires discharge drain at customer location.
* Tank is equipped with pneumatic cover controlled by PLC.

2. ) Spray Wash Tank: Spray washes the parts as the parts are being lowered into the tank and spray washes the parts from the top to insure that no metal shavings are still attached unto the parts. Tank working size 16” x 36” x 56”
* 1 to 1.5 HP centrifuge Pump
* Tank is equipped with automatic autofill feature and overflow protection. Overflow protection requires discharge drain at customer location.
* Heater System: Designed to maintain rinsing fluid temperature. Includes a 9KW immersion heater with digital temperature controller and ceramic insulation.

3. ) Super-heated Rinse Tank: Heats parts to 100 Degrees C to help drying the parts faster. Tank size 16” x 36” x 56”.
* 20KVA heater PLC temperature controlled.
* Tank is equipped with automatic autofill feature and overflow protection. Overflow protection requires discharge drain at customer location.

4. ) Dual Drying Tank: Holds 2 baskets at a time to double the drying time per cycle. Tank size is 32x36x56".
* Includes a recirculated hot air dryer system, which includes a 12KW heater core, and 635 CFM SSTL blower.
* Temperature is controlled with included digital temperature controller, insulated with ˝” Ceramic Insulation, and has a maximum temperature of 180 degrees F.

5. ) Steel Frame Support System:
* All tanks are mounted into a stainless steel table-top assembly which is mounted to a steel frame assembly, approximate size 200” x 60” x 60” tall.
* The frame is enclosed with stainless steel panels which allow for access to all internally mounted components.
* NEMA4X control enclosure includes Master Power Button with indicator light, E-stop, Manual Ultrasonic and dryer tank controls with digital temperature controller, ultrasonic generator indicator lights, control box safety access switch, and options controls.




Custom Industrial Cleaners:
Please fill in the "Quote form" and send request for proper costing.
