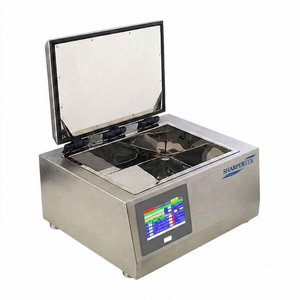

Ultrasonic Surgical Medical Cleaner by SharperTek

Our new ultrasonic cleaner for medical use provides a compact and effective way to clean surgical instruments. Suitable for hospitals, outpatient clinics, and sterile processing units, this tabletop device improves the efficiency and compliance of instrument reprocessing.

APPLICATION
Designed for the removal of minute biological debris from difficult-to-clean areas of surgical and laboratory devices while soaking in a detergent solution. Use of this product should follow removal of gross debris, as soil mass can dampen ultrasonic cavitations, effectively reducing cleaning results. Following ultrasonic cleaning, materials are to be rinsed & dried thoroughly in a companion Rinser/Blow-Off or processed through a mechanical Washer/Disinfector before preparing for terminal sterilization.


FEATURES OF THIS PRODUCT
Stainless Steel Construction
All exterior panels are type 304 stainless steel with a #4 polished finish. The sonic cleaning chamber is constructed of low-carbon, 12-gauge, type 316L mirror-finish stainless steel for increased corrosion resistance.
Automated Controls and HMI Display
A Programmable Logic Controller (PLC) located behind the front access door is used to program & control adjustable parameters as well as maintain control of automated functions.
UV Light and Ozone Swivel Lid Option
Provides an extra layer of cleanliness. Feature can be turned ON/OFF
Automatic Fill
The controller will automatically fill the sonic tank once the cycle starts.
Automatic Rinse and Spray Cycle
The controller will automatically fill the sonic tank without chemistry, sonicate, and spray rinse.
Liquid Level Sensors
A low liquid level sensor is provided to ensure the heaters are covered with water, and a high level sensor is provided to ensure proper liquid level depth for ultrasonic cleaning.
Overflow Protection
This product is equipped with a built-in overflow to drain.
Automatic Cycle Start & Stop
The controller will automatically initiate the start of ultrasonic cavitation once the tray has been lowered into the solution and the tank is full.
Audible Cycle Alarm
An audible alarm will signal the start of a cycle as the lid closes and the end of a cycle as the lid opens.
Ozone and UV Light Generator
Helps in maintaining a clean environment.
Automatic Cycle Timer
The controller will automatically run the programmed cycle time.
Automatic Solution Heater
The thermostat automatically controls the heater and maintains the tank solution at the preset temperature.
Automatic Detergent Dosing
The controller will automatically dispense a pre-set amount of sonic detergent into the water as the tank fills.
Automatic Drain
The controller will automatically open the drain valve when the DRAIN switch is pressed.


LED Display for heat and ultrasonic time

• Fused power entry module
• Adjustable Feet Height
• Drain
• Fill Port


BENCHTOP OPTIONS

• HMI Controls includes the following:
  • Hot / Cold Inlets
  • Programmable recipes
  • Power Drain
  • Chemical Dosing Pump
• UV / Ozone Generator Option
• Tubular Transducer Option
• Push/Pull Flushing Feature Option
• Spray Wand Option

WARRANTY
SharperTek USA, Inc. warrants that each ultrasonic cleaner is carefully inspected and tested to specifications and leaves the factory in proper working order, free of visible defects. Each ultrasonic cleaner is warranted for one year and includes parts and labor (excluding expendable parts) from the prescribed Start of Warranty. Applies only to Domestic U.S.A., Puerto Rico, and Canadian shipments.
UPC: 700112998942 enlarge title: Surgical Medical Cleaner Da Vinci XI and SI Ultrasonic Tool Cleaner Endoscopic Tool Ultrasonic Cleaner
